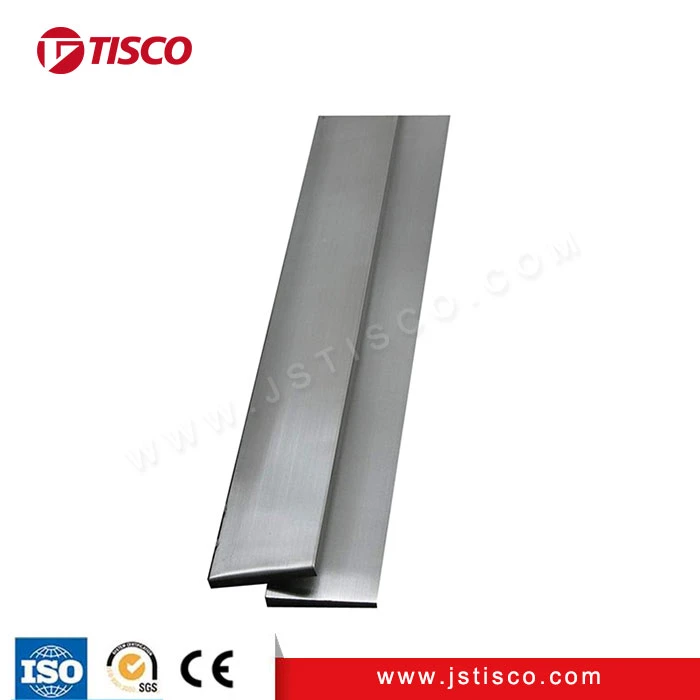

Stainless steel 430 Flat Bar

Grade 430 is a ferritic, straight chromium, non-hardenable grade, combining good corrosion resistance and formability characteristics with useful mechanical properties. Its ability to resist nitric acid attack permits its use in specific chemical applications but automotive trim and appliance...

Stainless steel 430 Flat Bar combines good corrosion resistance and formability characteristics with useful mechanical properties. Its ability to resist nitric acid corrosion allows it to be used in specific chemical applications, but automotive trim and electrical components are its largest application fields.

Specification of flat bar

Name	flat bar
Standard	ASTM, AISI,GB, JIS, DIN, EN, etc
Grade	201,202,302, 303,303Cu, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L,2205,2507
Thickness	1-20mm or be customized
Width	50 -100mm or be customized
Length	1000mm,3000mm,5000mm,8000mm,12000mm or be customized
Technique	cold rolled, hot rolled
Surface	2B,2E,BA,HL,NO.1,NO.4, 6K, 8K,embossed,mirror,polished
Processing	Bending, welding, stamping, punching, cutting
Certificate	ISO, SGS，BV
Packaging	Export sea worthy package + water proof paper+wooden pallet

Detail information of 430 flat bar

Width: 25mm to 60mm

Thickness: 5mm to 12mm

Finish: Hot Rolled Annealed & Pickled (HRAP)

Length: 3 to 6 Meters / 12 to 20 feet

End Finish: Both ends are marked with special colors.

Size tolerance: A276/484 / DIN 1028 (Full specification mentioned below)

Packing: Bars are packed in 1000 to 1,200 kgs bundles in waterproof HDPE cloths, Standard Export Seaworthy, Marking of Sizes, Grade, Net Wt, Gross Wt, No of pieces, POD, Origin should Mentioned on Each bundles

Stainless steel 430 flat bar compositions

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
430	min. max.	- 0.12	- 1.00	- 1.00	- 0.040	- 0.030	16.0 18.0	-	- 0.75	-

Stainless steel 430 flat bar mechanical properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
430	450	205	22	89	183
