What is the hardness of Hot Rolled Steel Sheet?
As a supplier of hot rolled steel sheets, I often encounter inquiries about the various properties of our products, and one of the most frequently asked questions is about the hardness of hot rolled steel sheets. In this blog post, I will delve into the concept of hardness in hot rolled steel sheets, exploring what it means, how it is measured, the factors that influence it, and its significance in different applications.
Understanding Hardness in Steel
Hardness is a crucial mechanical property of steel that refers to its ability to resist deformation, indentation, or scratching. In the context of hot rolled steel sheets, hardness is a key determinant of the material's performance and durability. It affects how the steel sheet behaves during processing, such as cutting, bending, and welding, as well as its suitability for specific end - uses.
There are several different hardness scales used in the steel industry, each with its own method of measurement and application. The most common scales for measuring the hardness of hot rolled steel sheets are the Brinell hardness scale, the Rockwell hardness scale, and the Vickers hardness scale.
The Brinell hardness test involves pressing a hard steel or carbide ball of a specified diameter into the surface of the steel sheet with a known force. After the force is removed, the diameter of the resulting indentation is measured, and the Brinell hardness number (BHN) is calculated based on the applied force and the surface area of the indentation. The Brinell test is typically used for measuring the hardness of thick steel sheets or materials with a relatively coarse grain structure.
The Rockwell hardness test is a more commonly used method in the steel industry. It measures the depth of penetration of an indenter (either a diamond cone or a steel ball) into the steel sheet under a minor and then a major load. The difference in the depth of penetration between the two loads is used to determine the Rockwell hardness number. There are different Rockwell scales, such as the Rockwell B scale (using a steel ball indenter) and the Rockwell C scale (using a diamond cone indenter), which are suitable for different ranges of hardness.
The Vickers hardness test uses a square - based pyramid - shaped diamond indenter. The indenter is pressed into the steel sheet with a specified force, and the diagonal length of the resulting square indentation is measured. The Vickers hardness number (HV) is then calculated based on the applied force and the surface area of the indentation. The Vickers test is known for its high accuracy and is often used for measuring the hardness of thin steel sheets or materials with a fine grain structure.
Factors Affecting the Hardness of Hot Rolled Steel Sheets
The hardness of hot rolled steel sheets is influenced by several factors, including the chemical composition of the steel, the rolling process, and the heat treatment.
Chemical Composition: The chemical composition of the steel plays a significant role in determining its hardness. Elements such as carbon, manganese, chromium, and nickel can increase the hardness of the steel. For example, carbon is one of the most important elements in steel. As the carbon content increases, the hardness of the steel also increases. However, higher carbon content can also make the steel more brittle. Other alloying elements can also have a significant impact on the hardness and other properties of the steel. For instance, chromium can improve the corrosion resistance and hardness of the steel, while nickel can enhance its toughness and ductility.
Rolling Process: The hot rolling process itself can affect the hardness of the steel sheet. During hot rolling, the steel is heated to a high temperature and then passed through a series of rollers to reduce its thickness. The rolling temperature, the reduction ratio (the ratio of the initial thickness to the final thickness of the steel sheet), and the rolling speed can all influence the microstructure and hardness of the steel. Generally, a higher reduction ratio and a lower rolling temperature can result in a finer grain structure and higher hardness.
Heat Treatment: Heat treatment is another important factor that can be used to adjust the hardness of hot rolled steel sheets. Heat treatment processes such as annealing, quenching, and tempering can change the microstructure of the steel, thereby altering its hardness and other properties. Annealing is a process of heating the steel to a specific temperature and then slowly cooling it. This process can reduce the hardness of the steel and improve its ductility. Quenching, on the other hand, involves heating the steel to a high temperature and then rapidly cooling it in a quenching medium such as water or oil. Quenching can significantly increase the hardness of the steel, but it can also make the steel more brittle. Tempering is often carried out after quenching to reduce the brittleness and improve the toughness of the steel while maintaining a relatively high hardness.
Significance of Hardness in Different Applications
The hardness of hot rolled steel sheets is of great significance in different applications.
Construction Industry: In the construction industry, hot rolled steel sheets are widely used for structural components such as beams, columns, and frames. The hardness of the steel sheets affects their strength and ability to withstand external loads. For example, steel sheets with higher hardness are more suitable for applications where high strength and resistance to deformation are required, such as in high - rise buildings or bridges.
Automotive Industry: In the automotive industry, hot rolled steel sheets are used for manufacturing various components such as body panels, chassis parts, and engine components. The hardness of the steel sheets is important for ensuring the safety and durability of the vehicles. For instance, body panels made of steel with appropriate hardness can provide better resistance to impact and deformation, enhancing the safety of the passengers.
Manufacturing Industry: In the general manufacturing industry, hot rolled steel sheets are used for a wide range of products, from machinery parts to consumer goods. The hardness of the steel sheets can affect the ease of processing and the final performance of the products. For example, steel sheets with the right hardness are easier to cut, weld, and form into the desired shapes, while also providing the necessary strength and wear resistance for the end - products.
Related Stainless Steel Products

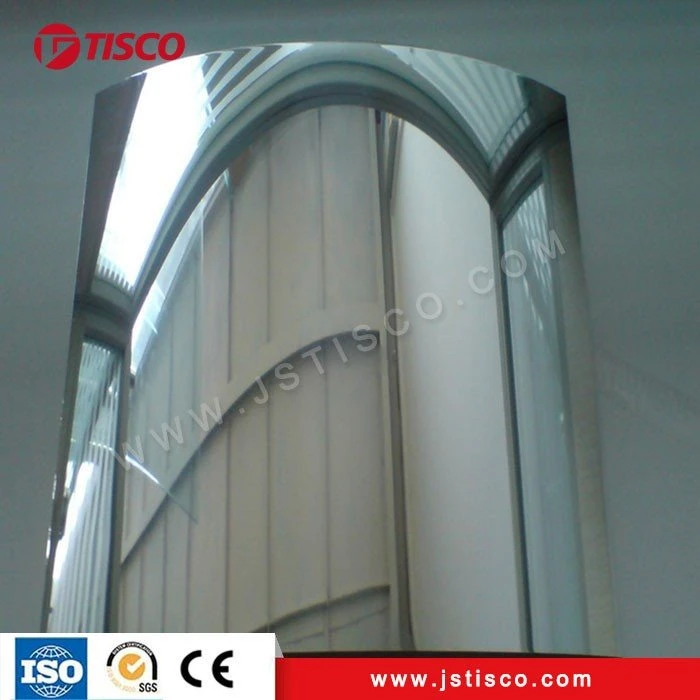

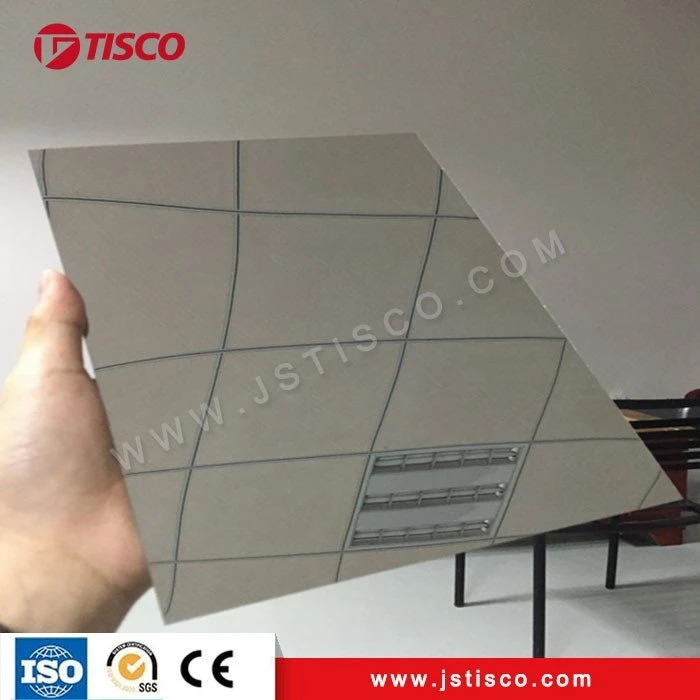

If you are also interested in stainless steel products, we also offer a wide range of high - quality Stainless Steel Sheet 301, Stainless Steel Sheets, and Stainless Steel Plate 301. These stainless steel products have excellent corrosion resistance and mechanical properties, making them suitable for a variety of applications.
Conclusion
In conclusion, the hardness of hot rolled steel sheets is a complex and important property that is influenced by multiple factors. Understanding the concept of hardness, how it is measured, and its significance in different applications is crucial for both suppliers and customers. As a supplier of hot rolled steel sheets, we are committed to providing high - quality products with the appropriate hardness to meet the diverse needs of our customers.
If you are interested in our hot rolled steel sheets or have any questions about their hardness or other properties, please feel free to contact us for further discussion and potential procurement opportunities. We look forward to working with you to find the best steel solutions for your projects.
References
- ASM Handbook Volume 1: Properties and Selection: Irons, Steels, and High - Performance Alloys.
- Steel Metallurgy for the Non - Metallurgist by George Krauss.
- Principles of Ferrous Metallurgy by George F. Vander Voort.
